OpenGL 1.0 Graphics Simulation

A 3D scene simulation written from scratch in C++ and OpenGL 1.0 — no engine, no scene graph — with a day/night cycle, an 8-light system, waypoint path animation and a full Dear ImGui scene editor.

Type: University Assignment
Module: GDEV40026
API: OpenGL 1.0
Window: FreeGLUT
Year: 2025
Team: Solo
Source Files: 25 C++
Resolution: 1600×900

OpenGL 1.0 C++ FreeGLUT Dear ImGui STB Image OBJ Parser MTL Parser Path Animation Multi-Light Day/Night Cycle Scene Hierarchy Frustum Culling Visual Studio

Final Grade 0%

Watch Showcase Dev Thread · Uni login

OGL 1.0

API

C++ Files

Light Sources

Target FPS

Overview

What is this?

A fully custom 3D scene simulation built from scratch in OpenGL 1.0 for the GDEV40026 Introduction to Graphics Programming module at Staffordshire University. No game engine. No scene graph. Every system — object loading, lighting, texturing, path animation, camera control, and the ImGui interface — written in C++ by hand.

The simulation runs at up to 240 FPS on a 1600×900 window and includes a real-time day/night cycle, a multi-light system with 8 independent light sources, per-object waypoint-based path animation, a full Dear ImGui editor interface, OBJ and MTL parsing, texture hotswapping via STB, and an in-simulation help menu. The window title reads: "3D OGL Simulation [Graphics Programming] | pls give me high marks :3".

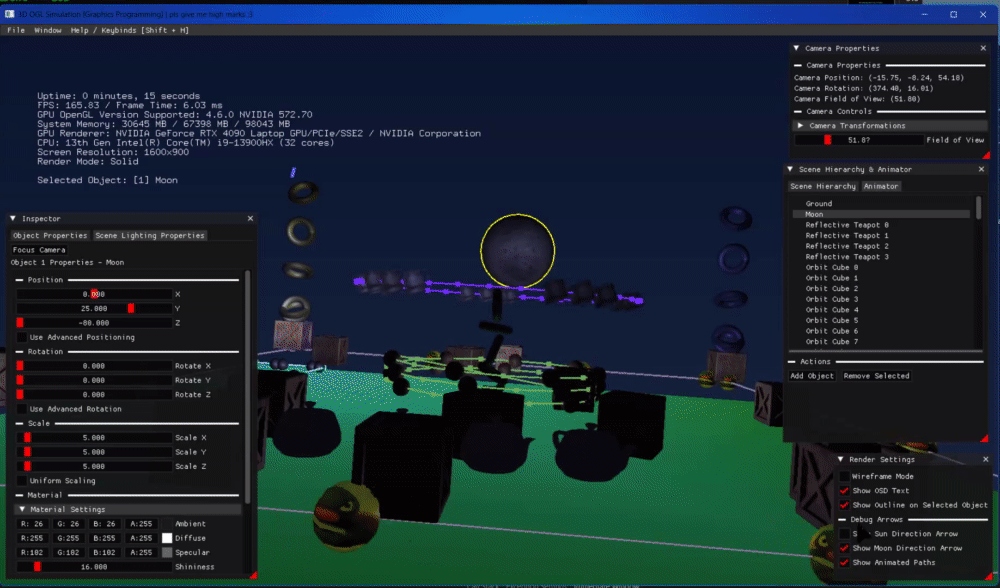

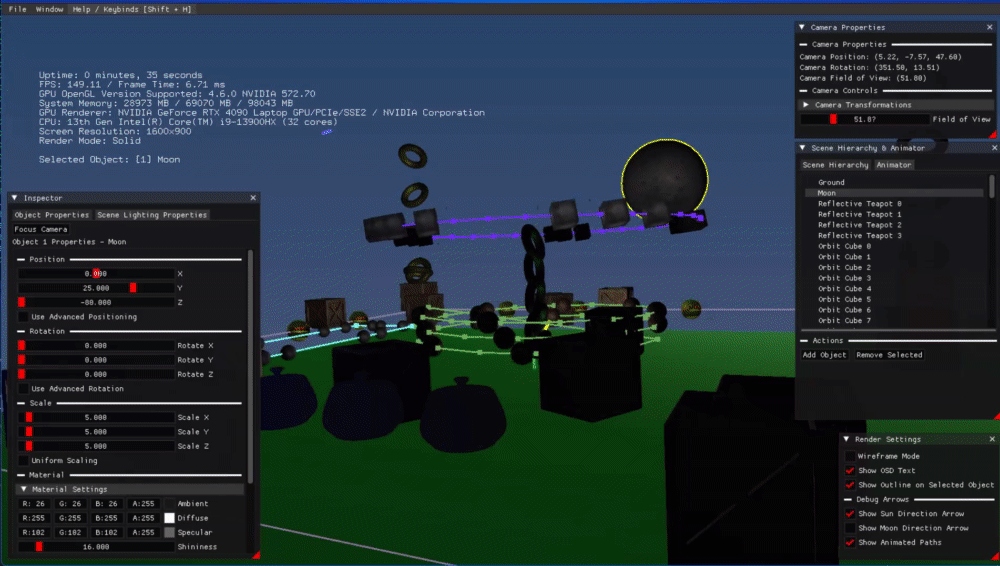

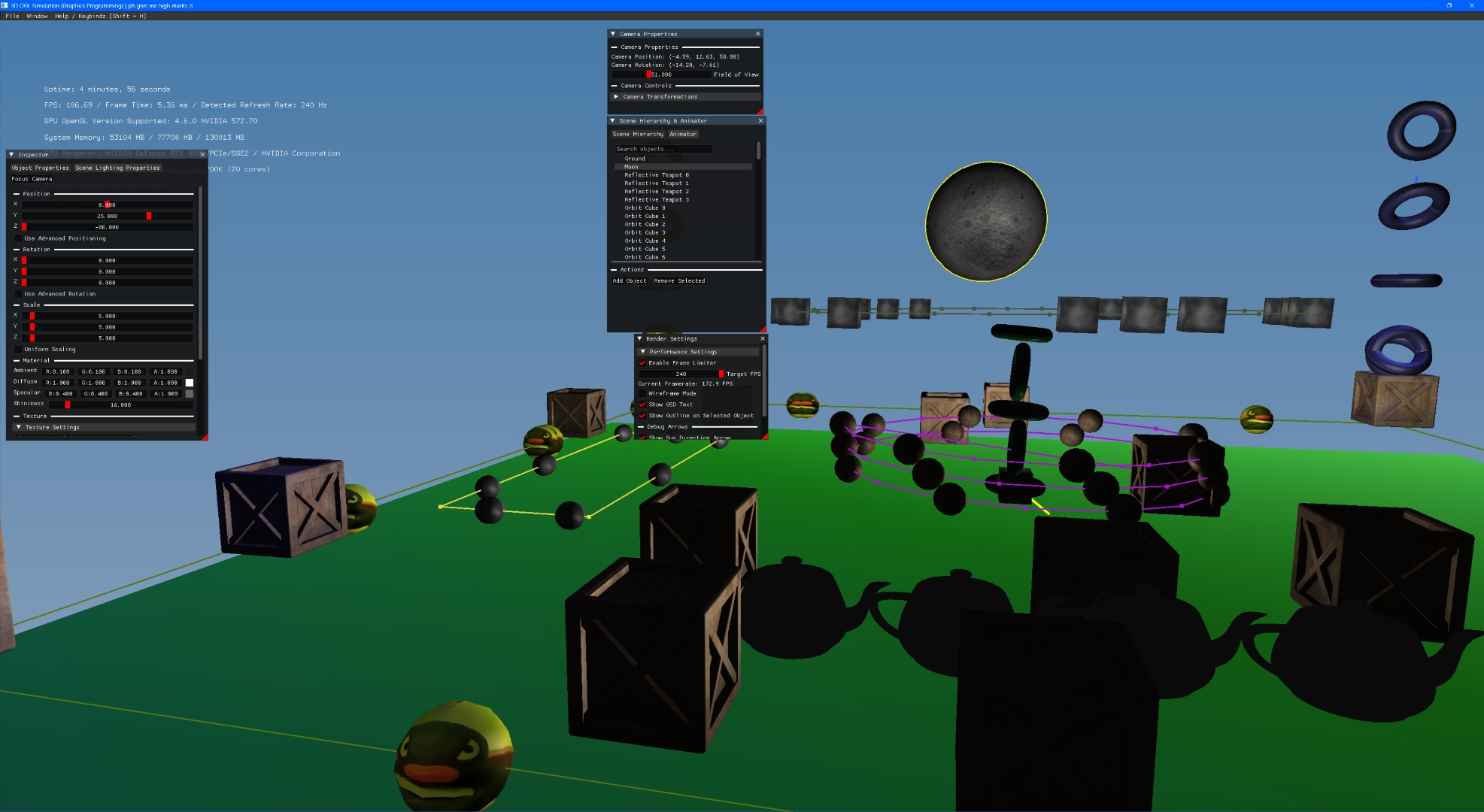

// Final simulation — day scene, multi-light, full render

Development spanned six progress posts from 9 March to 8 May 2025 — each post building substantially on the last, from a spinning rectangle to a complete scene editor.

Final Showcase Video

OpenGL Graphics Simulation showcase thumbnail

Watch on YouTube

// Full feature showcase — May 2025 submission

Video chapters: 00:00 Add Objects · 01:06 Transformation & Material Editing & Texture Hotswapping · 02:21 Scene Lighting · 05:21 Camera Controls · 06:25 Object Parenting & Animation · 10:39 Render Settings

Development

Six Progress Posts

The forum thread documents six phases of development, each building on the last. Every post introduced new systems — from a spinning rectangle on day one to a fully editable 3D scene six weeks later.

Week 0 · 9 Mar 2025
Research & Project Pitch
- Explored OpenGL 1.0 fundamentals and pipeline documentation
- Defined the project scope: a day/night lighting simulation with loaded 3D models
- Set up the FreeGLUT + GLUT environment in Visual Studio
Post #1 · 10 Mar 2025
First 3D Scene & Lighting Foundations
- FreeGLUT window creation with 60 FPS timer loop
- Custom OBJ parser — vertices, normals, UV coordinates, face indices
- 3D cube with perspective projection, depth testing, back-face culling
- Smooth shading (GL_SMOOTH) with diffuse, ambient, and specular lighting
- On-Screen Display (OSD) text overlay using GLUT_BITMAP_9_BY_15 — FPS counter
Post #2 · 22 Mar 2025
Camera System & ImGui Foundation
- Mouse-driven camera — left click+drag to orbit/rotate, scroll to zoom
- WASD to move the selected object; Q/E to cycle objects in scene
- First Dear ImGui integration — render mode toggle, OSD toggle

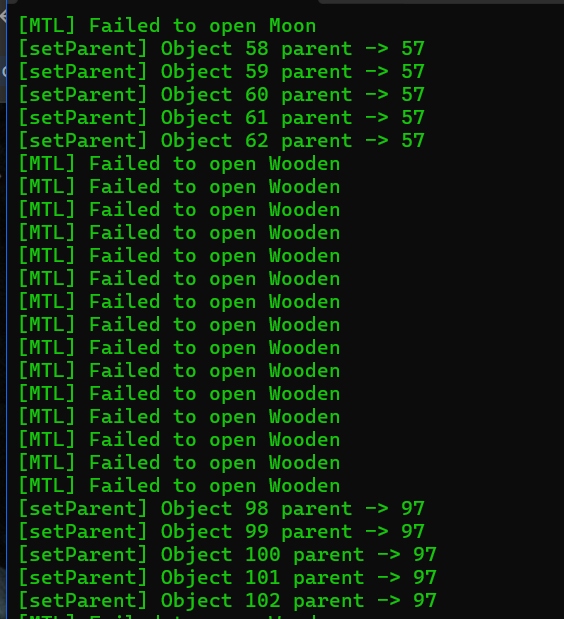

- Colour-coded console logging with severity enum (Info / Warning / Error)
Post #3 · 30 Mar 2025
Full ImGui Interface & Texturing
- Object Properties panel — position, rotation, scale, uniform scaling toggle
- Scene Object Browser for listing and selecting objects
- Scene Hierarchy with parent/child object relationships — Grandparent → Parent → Child
- isAncestorOf() check prevents cyclic parenting loops
- STB-based texture loading — UV coordinate parsing and glBindTexture integration
- Panel visibility managed through UIPanelStates; glPushMatrix/glPopMatrix debugging

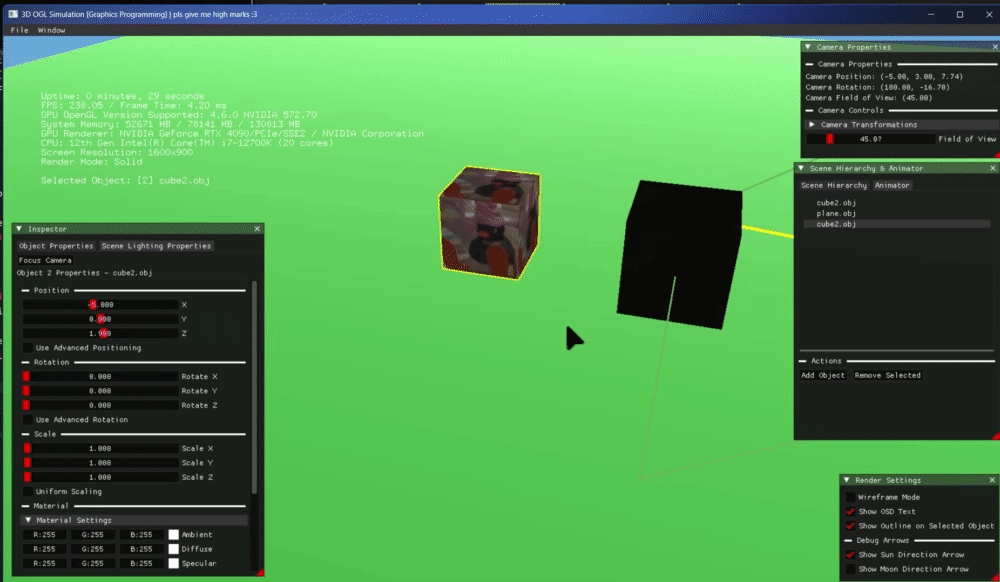

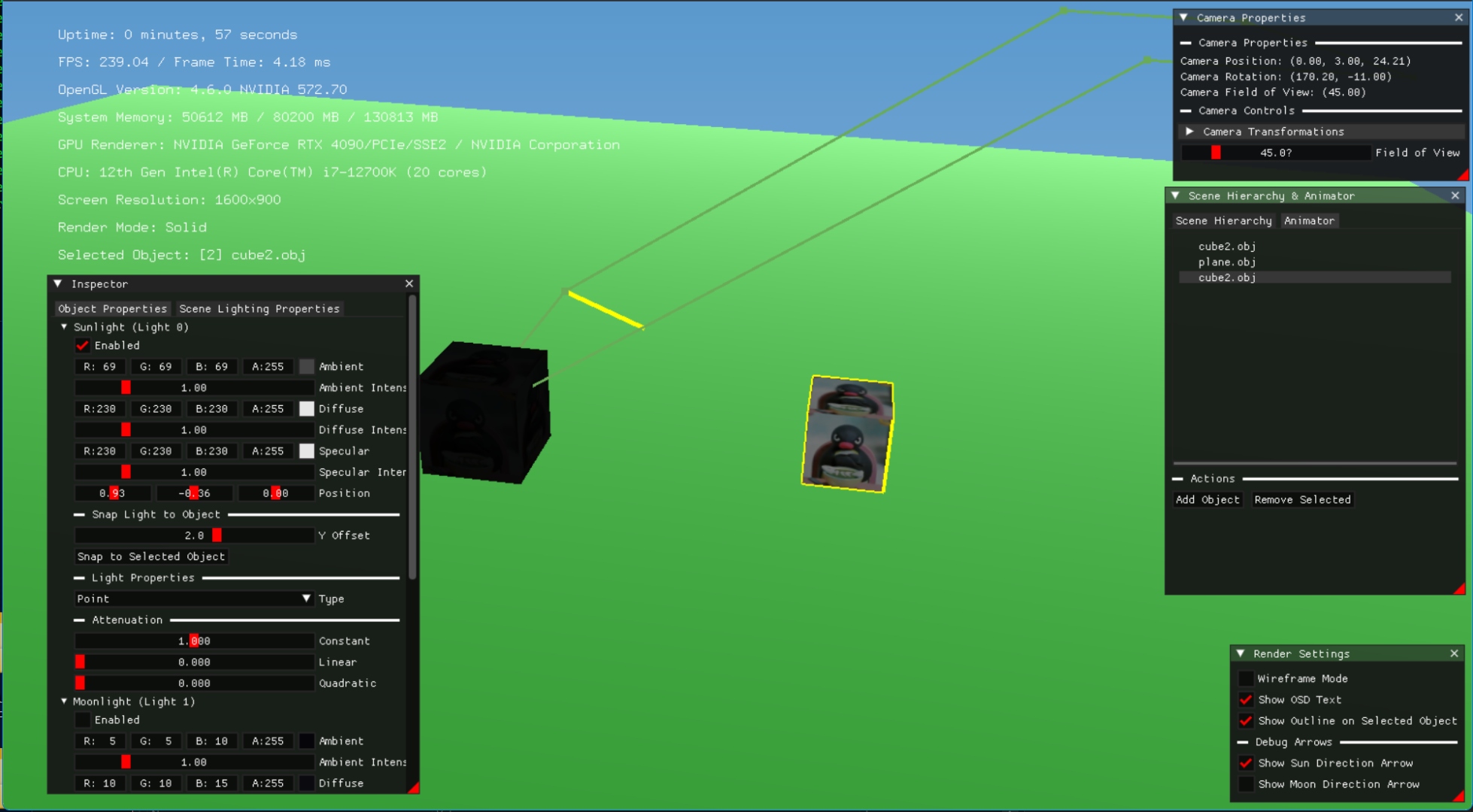

Post #4 · 11 Apr 2025
Path Animation, Multi-Light & Day/Night Cycle
- Per-object waypoint path animation — Vector3 waypoints, loop toggle, path speed slider
- Animated path line rendering — visible debug arrows showing routes
- Day/night cycle — 30-second period via sin/cos; yellow sun line, purple moon line
- 8-light system — Sunlight, Moonlight + 6 additional configurable lights
- Selected object outline rendering; camera snap to object (F key), orbit mode (O key)
- Texture cache with mipmapping; correct UV wrapping for all loaded textures
- Modular UI panels via inheritance and polymorphism; lambdas for refactored rendering
Post #5 · 24 Apr 2025
Finalisation & Animator

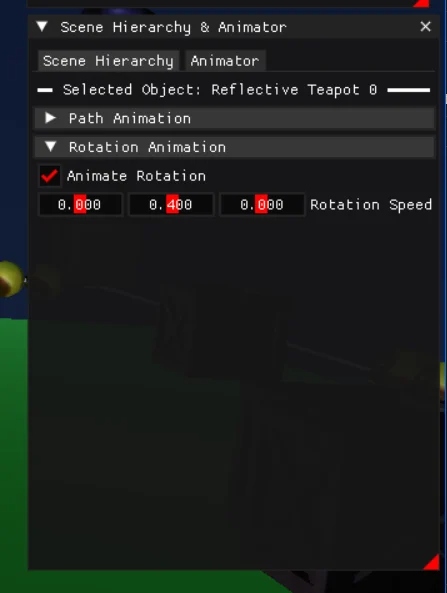

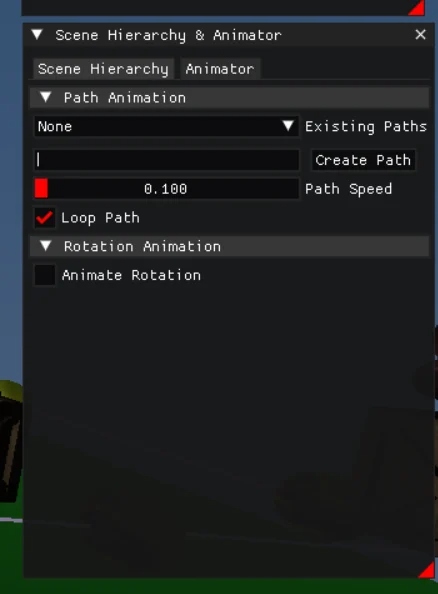

- Animator tab inside Scene Hierarchy — path assignment per object, loop toggle

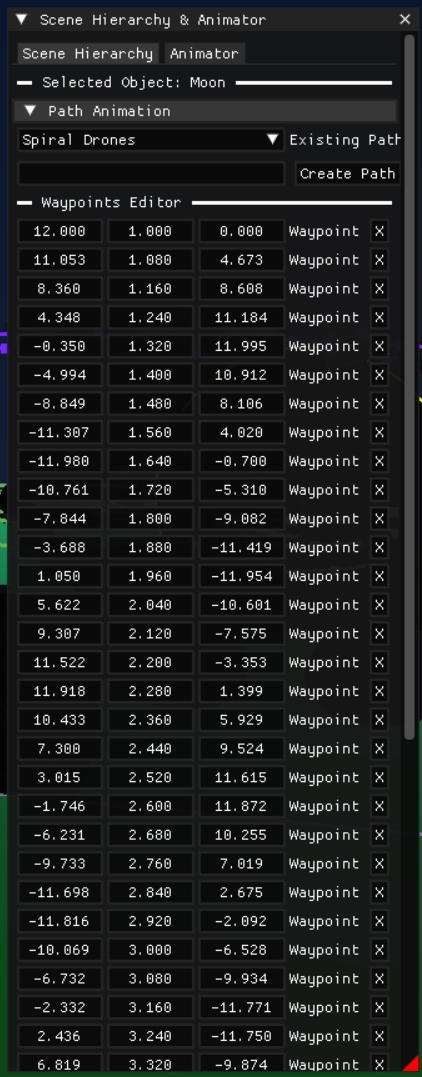

- Waypoints Editor — add/remove/reposition waypoints with live preview
- Flyout notification messages on key actions
- Help menu (Shift+H) — complete controls reference resizable popup
- Camera directionFromAngles() — yaw/pitch to radians for correct forward movement
- MTL material file parser — shininess, ambient, diffuse, specular from OBJ exports
Post #6 · 8 May 2025
Last-Minute Bug Fixes & Polish
- Fixed read access violation on multi-object deletion — parent/child ID handling corrected

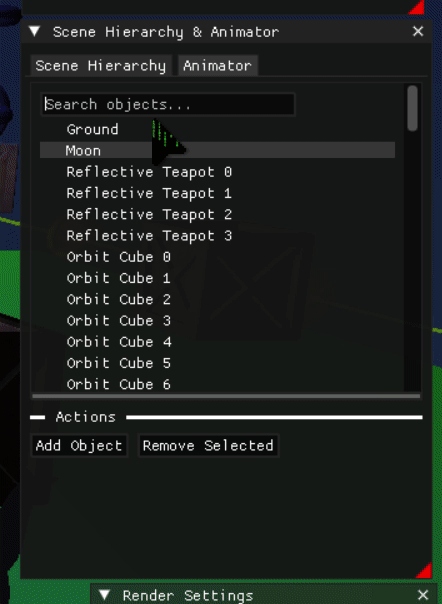

- Scene Hierarchy search bar — ImGui text input to filter long object lists
- Frame rate limiter — auto-detects display refresh rate; set to 240 FPS target
- Wireframe mode now works correctly alongside object outline selection
- Spotlight added to each stacked torus; "deg" string used after degree sign encoding issue
- OSD text repositioned dynamically — no longer hardcoded to 800×600, works at any resolution

Editor Interface

Dear ImGui Panels

Five floating ImGui panels form the entire scene editor. Each is resizable and independently togglable. The simulation runs underneath in real time while panels are open — no separate editor mode.

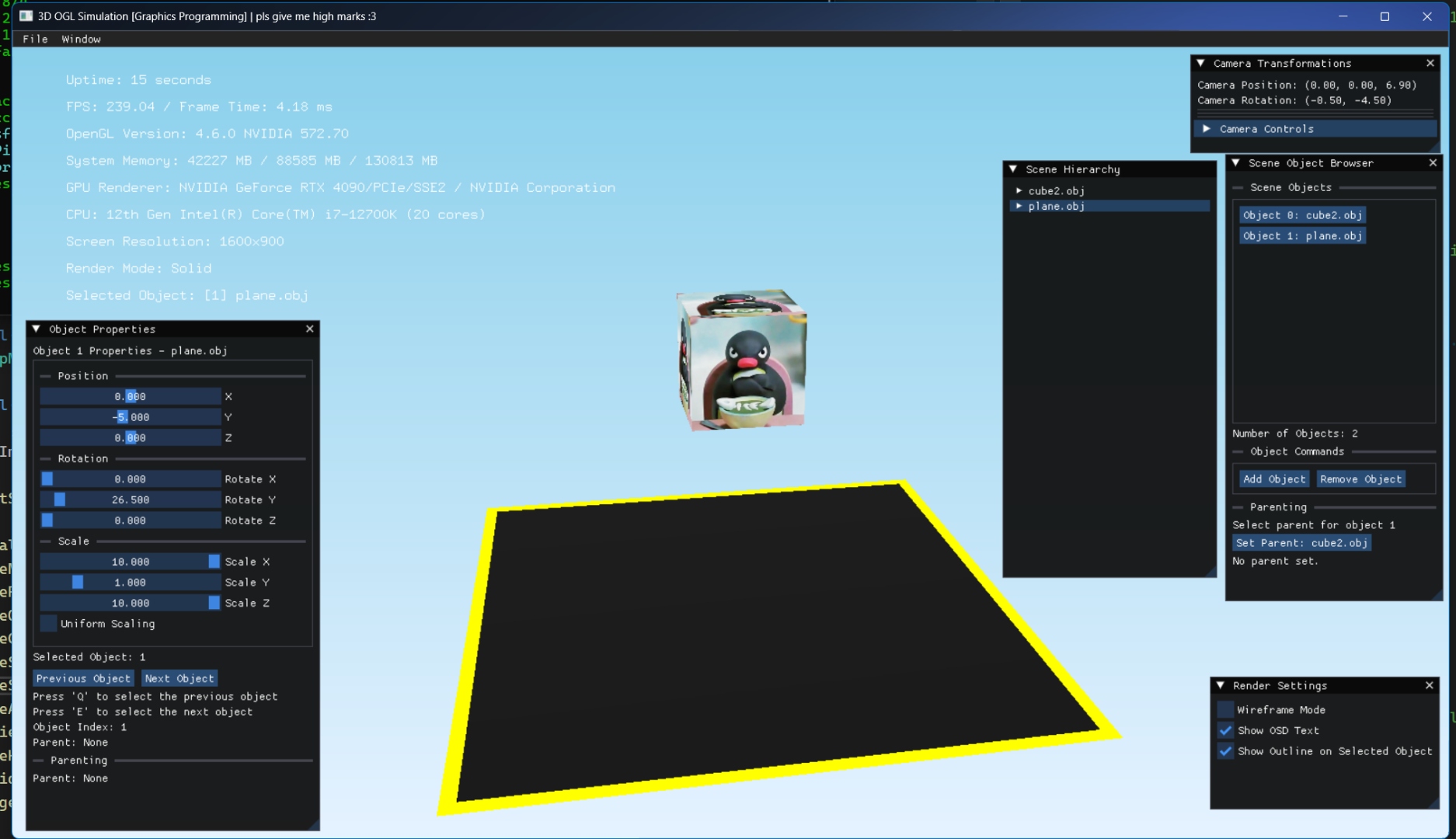

// Object properties + texture UI

Inspector

Panel

Object Properties tab — position, rotation, scale with uniform toggle, material settings (ambient/diffuse/specular/shininess), texture preview. Scene Lighting Properties tab — configure each of the 8 light sources individually.

Scene Hierarchy & Animator

Panel

Lists all scene objects with parent/child indentation and search bar. Animator tab shows path assignment, waypoints editor (add/remove/reposition), path speed, loop toggle, and rotation animation options per object.

Scene Object Browser

Panel

Quick object picker — lists all loaded scene objects with an Add Object and Remove Selected action row. Objects added here immediately appear in the simulation.

Camera Properties

Panel

Displays Camera Position, Rotation, and Field of View in real time. Camera Controls section and Camera Transformations (reset). Field of View slider with "deg" unit label.

Render Settings

Panel

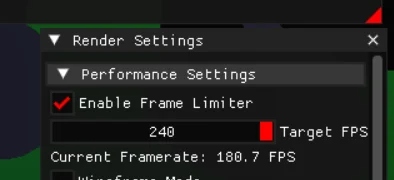

Wireframe Mode toggle, Show OSD Text, Show Outline on Selected Object. Debug Arrows group — Show Sun Direction Arrow, Show Moon Direction Arrow, Show Animated Paths. Performance Settings — Enable Frame Limiter with target FPS slider.

Controls

Full Keybinds

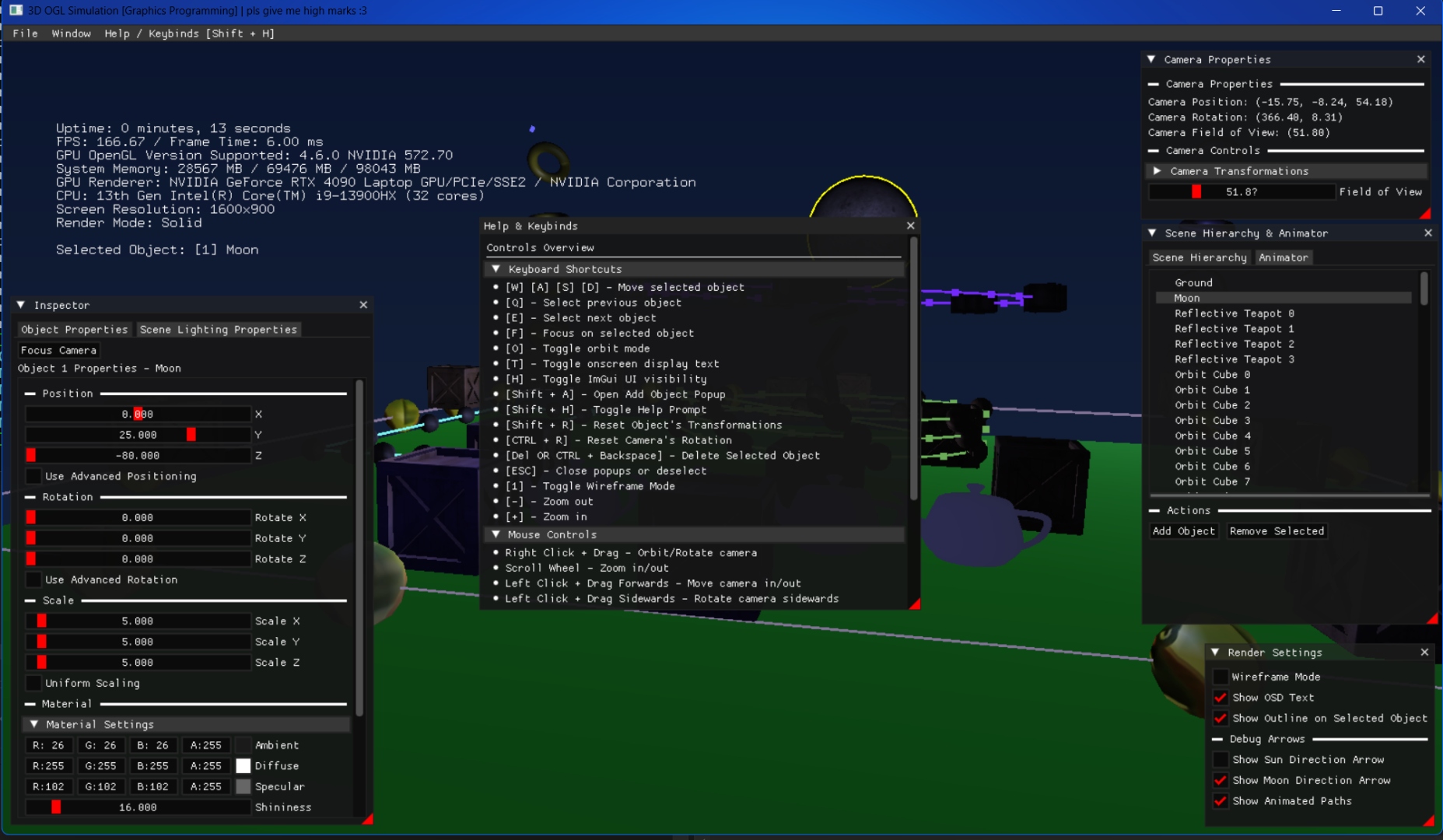

All controls are documented in-simulation via the Help & Keybinds popup (Shift+H). Some shortcuts require glutGetModifiers() to detect Shift/Ctrl/Alt; others use ASCII codes for keys like -, =, and +.

Key	Action
`W A S D`	Move selected object
`Q / E`	Previous / next object
`F`	Snap camera to selected object
`O`	Toggle orbit camera mode
`T`	Toggle OSD text display
`H`	Hide / show ImGui panels
`1`	Toggle wireframe mode
`- / +`	Zoom out / zoom in
`Shift+A`	Open Add Object popup
`Shift+H`	Help & Keybinds popup
`Shift+R`	Reset selected object transforms
`Ctrl+R`	Reset camera position & rotation
`Del`	Delete selected object
`ESC`	Close open popups
`RMB+Drag`	Orbit / rotate camera
`Scroll`	Zoom camera in/out
`LMB+Drag↑`	Move camera forward/back
`LMB+Drag←→`	Rotate camera left/right

Technical Breakdown

Systems & Architecture

The project is built entirely in C++ without any game engine abstraction. Systems are organised into modular files — each class managing one concern. The main render loop runs via FreeGLUT's timer callback at the target frame interval.

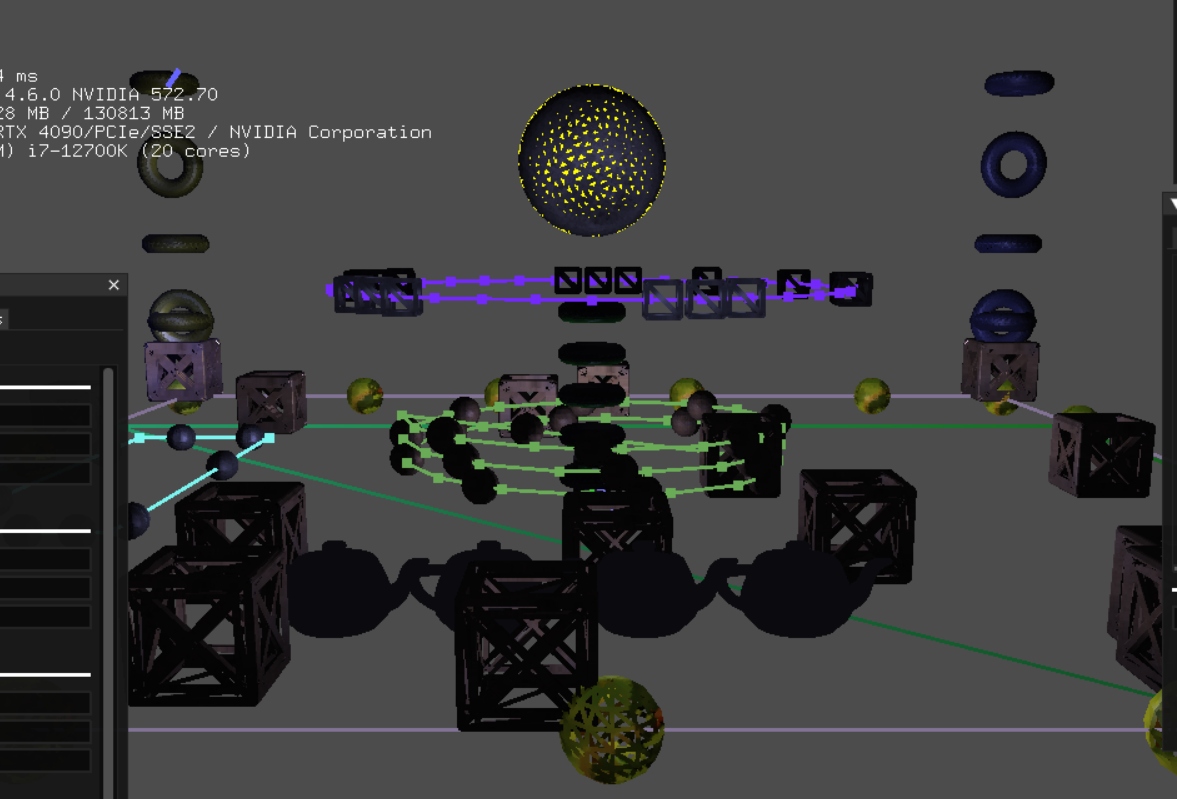

// Debug path visualisation — animated waypoints

Object system

Every scene object holds vertex data (positions, normals, UV coords), a material struct (ambient/diffuse/specular/shininess parsed from MTL), and a transform (position, rotation, scale). The Object class parses OBJ files into vertex structures using helper functions split by component — faces, normals, UVs each have their own parser method for clarity.

Texturing

The STB image library loads JPEGs and PNGs into raw pixel data, which is uploaded to OpenGL via glTexImage2D. A TextureManager caches loaded textures by filename to avoid redundant GPU uploads. Mipmapping is enabled for all textures. UV coordinates are parsed per-vertex from OBJ files and applied with correct wrapping.

Lighting

Eight GL_LIGHT slots are used simultaneously. Sunlight and Moonlight are directional and driven by the day/night cycle's sin/cos offset. The remaining 6 lights are point lights configurable via the Inspector's Scene Lighting Properties tab. Each light has independent ambient, diffuse, and specular RGB values plus an intensity multiplier.

Path animation

The Path class stores a vector of Vector3 waypoints. The PathManager tracks all paths in the scene. Each object can be assigned a path from the Animator tab — the object interpolates between waypoints at the configured speed, looping if enabled. Paths are visualised as debug lines in the scene.

Code quality

All functions, classes, and structs are Doxygen-commented so IDE tooltips show documentation inline. Large functions were refactored into sequential helper functions for readability. Lambda functions are used in the render pipeline where stateless transformations are applied per-object.

Camera bug fixed in Post #5Moving forward with Left Click+Drag only moved on the Z-axis, ignoring the camera's actual orientation. The fix — directionFromAngles() — converts the camera's yaw and pitch to radians and applies trigonometry to return the correct forward direction vector. Took a few hours to get right.

Codebase

Custom Source Files

25 custom C++ source and header files, plus the full Dear ImGui source, FreeGLUT, and STB libraries.

Camera .cpp / .h
Console .h
Controls .cpp / .h
DebugArrow .cpp / .h
FrustumCulling .cpp / .h
Main .cpp / .h
Math .h
Object .cpp / .h
Path .h
PathManager .cpp / .h
Renderable .h
Scene .cpp / .h
TextureManager .cpp / .h
UI .cpp / .h
UIPanelBase .h

Reflection

Challenges & Lessons

OpenGL 1.0's immediate mode is deceptively simple at the start and deceptively awkward once you push it. glPushMatrix and glPopMatrix must be perfectly balanced — a missing pop left child objects multiplying their parent transform and flying off into the void. Finding that took time.

The cyclic parenting bug was subtle: setting Object A as a child of Object B when B was already a child of A. The fix — isAncestorOf() — walks the parent chain on every setParent call and rejects the operation if a cycle is detected.

Object deletion bugDeleting multiple objects triggered a read access violation. The root cause was parent objects being removed without orphaning their children, corrupting the object ID list. The selected object index also wasn't updated after deletion — a second pointer into stale memory. Both fixed together.

Working without engine conveniences forces a deep understanding of what those conveniences actually do. Writing a UV parser, a texture cache, a path interpolator, and a scene hierarchy from scratch in a six-week academic sprint is not trivial — and the 85% grade reflects that it was done well.
